Vacuum Manifold

2000ml Lab Glassware Vacuum Filtration Membrane Buchner Funnel Flask Apparatus Kit

1. 2000ml Vacuum suction filter device configuration: 500ml filtering cup, 2000ml Conical flask, high borosilicate glass filtering head.

2. With high transparency & high chemical stability & Strong acid & alkali resistance

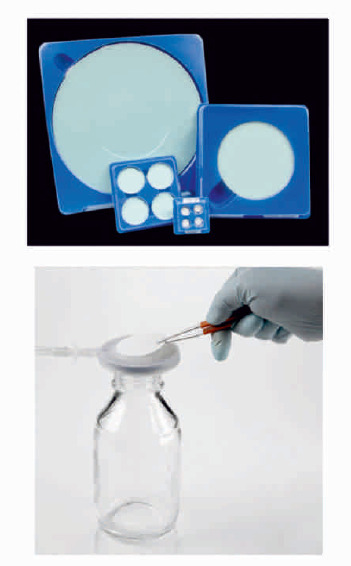

Membrane filters for filtration material

  • Nylon membranes are hydrophilic with broad chemical compatibility and are recommended for applications requiring very low extractables. They can exhibit high protein and small molecule binding and are not recommended for biological samples, but can be used for filtering protein-free media.
  • PTFE membranes feature high chemical compatibility and low protein and small molecule binding, and are useful in filtering aggressive chemicals.
  • Hydrophilic PVDF membranes are very low protein binding and are recommended for filtering protein solutions.
  • Glass fiber filters are produced from borosilicate glass fibers and are typically used for pre-filtration.
  • Polyethersulfone (PES) membranes are recommended for filtering culture media, as they exhibit fast flow rates and low protein binding.
  • Cellulose acetate (CA) membranes are ideal for filtering biological samples and culture media containing sera, as they exhibit very low protein and macromolecule binding.
  • Cellulose nitrate (CN) membranes are recommended for general buffer filtration and feature low extractables but high protein binding

Order Information

Part No Membrane Type Disc size in mm Pore size (μm) Unit
NYMF-132210 Nylon 66 13 0.22 100/pk
NYMF-134510 Nylon 66 13 0.45 100/pk
NYMF-252210 Nylon 66 25 0.22 100/pk
NYMF-254510 Nylon 66 25 0.45 100/pk
NYMF-472210 Nylon 66 47 0.22 100/pk
NYMF-474510 Nylon 66 47 0.45 100/pk
PTFEMF-132210 PTFE 13 0.22 100/pk
PTFEMF-134510 PTFE 13 0.45 100/pk
PTFEMF-252210 PTFE 25 0.22 100/pk
PTFEMF-254510 PTFE 25 0.45 100/pk
PTFEMF-472210 PTFE 47 0.22 100/pk
PTFEMF-474510 PTFE 47 0.45 100/pk
PVDFMF-132210 PVDF 13 0.22 100/pk
PVDFMF-134510 PVDF 13 0.45 100/pk
PVDFMF-252210 PVDF 25 0.22 100/pk
PVDFMF-254510 PVDF 25 0.45 100/pk
PVDFMF-472210 PVDF 47 0.22 100/pk
PVDFMF-474510 PVDF 47 0.45 100/pk
PESMF-252210 PES 25 0.22 100/pk
PESMF-254510 PES 25 0.45 100/pk
PESMF-472210 PES 47 0.22 100/pk
PESMF-474510 PES 47 0.45 100/pk
MESMF-472210 MCE 47 0.22 100/pk
MESMF-474510 MCE 47 0.45 100/pk

The stainless steel 316 manifold for 3 or 6 filtration units is fitted with stainless steel units. The apparatus can be autoclaved and sterilized by dry heat at 180°C.

Order Information

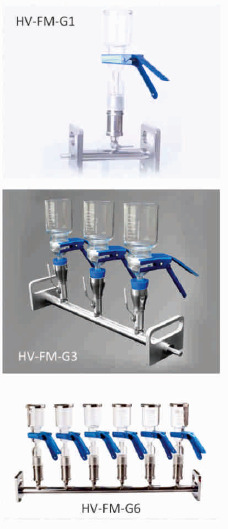

HV-FM-G1 1) Stainless Steel Manifold,
2) One Glass Filtration Unit,
3) Two pieces of hosepipe
HV-FM-G3 1) Stainless Steel Manifold,
2) Three Glass Filtration Units,
3) Two pieces of hosepipe
HV-FM-G6 1) Stainless Steel Manifold,
2) Six Glass Filtration Units,
3) Two pieces of hosepipe

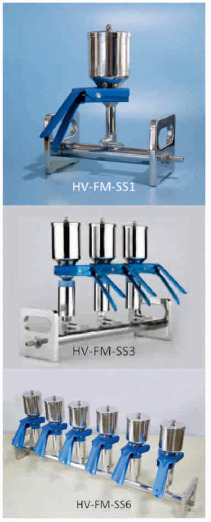

HV-FM-SS1 1) Stainless Steel Manifold,
2) One Stainless Steel Filtration Unit,
3) Two pieces of hosepipe
HV-FM-SS3 1) Stainless Steel Manifold,
2) Three Stainless Steel Filtration Units,
3) Two pieces of hosepipe
HV-FM-SS6 1) Stainless Steel Manifold,
2) Six Stainless Steel Filtration Units,
3) Two pieces of hosepipe
NC5613 Single Stage Vacuum Pump

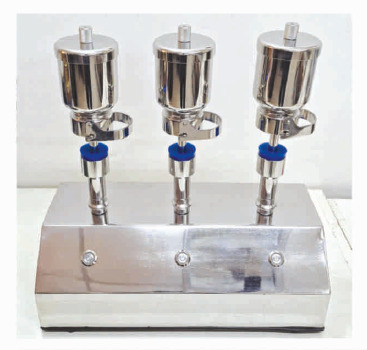

Aluminum clip is designed into a reasonable closely way, with clip filter glass and intermediate filtration heads together, which ensure strict seal without leakage. There is no cleaning corner exist for stockpile liquid and easy to clean. Stainless steel material makes the analytic results more stable and reliable due to its characteristics of acid proof and alkali, as well as hard to corrosion.
This apparatus is suitable only for vacuum operation. Flushing tubes should not be used at the pressure of exceeding 1.3 bar (300 mbar over-pressure).

Applications

  • Microbiological quality control (e.g. Escherichia coli detection), biochemistry, hydrobiology.
  • Residue analyses.
  • Serial filtration carried out rapidly and easily with a common drainage outlet.
  • Drinks (e.g. cold sludge in beer), foodstuffs (e.g. Ice cream), cosmetics, pharmaceuticals, water, wastewater.
  • Precipitate analysis, contamination tests and so on.

Features

  • Each station uses separate control valve for independent operation, easy to use and disinfect with a high efficiency.
  • This system can filtrate three or six samples at the same time at low rate, with a high sensitivity.
  • Sturdy won't tip when full loaded due to the units with low center of gravity.
  • Anodized aluminium handles on both ends are designed for positioning on bench top.
  • All MVF series vacuum filtration devices are made of stainless steel which is suitable for filtration, especially in the microbiological field.

Vacuum Filtration System Traditional to Modern

Compact Vacuum Filtration

NovaVac 1000

NovaVac Pump is ideal for sample preparation in microbiological analysis Achieving a trans membrane pressure of 400mbar and flow rate of 5,0 1/min. (10 litre water displacement by air in 1 minute).

Flow Rates
Constant flow rates and a defined maximum vacuum smooth and reliable filtration.

Applications

  • Waste water Filtration
  • Mobile Phase and analytical Solvent
  • Media Filtration
  • General Filtration
Flow rate Minimum 5 L/min
Material in contact with the liquid filtered please check the compatibility of your fluids Silicon
Polytetrafluoroethylene (PTFE)
55 316L (Connecter)
Body (Power Coated)
Dimension (Cm) (LXW H) 15x18x12
Weight 8 kg
Tubing Connection 8 mm Hose
Electrical norms compliance CE
Protection type IP64
Protection class III

Simple Setup Saves Time

The Microjet Pump is simple to setup and therefore saves you precious time. Simply connect the pump to your manifold or filtration apparatus, place the discard tubing to drain, and you ready to filter. There is no need to use additional containers to capture the waste liquid. This brings signify can't time saving versus vacuum/pressure pumps or in-house vacuum, because the cleaning/decontaminating and re-installing the waste containers.

Sr No Description Qty
1 Main unit 01
2 Silicon Tubing 3 mtr 03
3 Power Adaptor 2.5Amp 230 vac 01
4 Power Cord 01
5 User Manual 01
